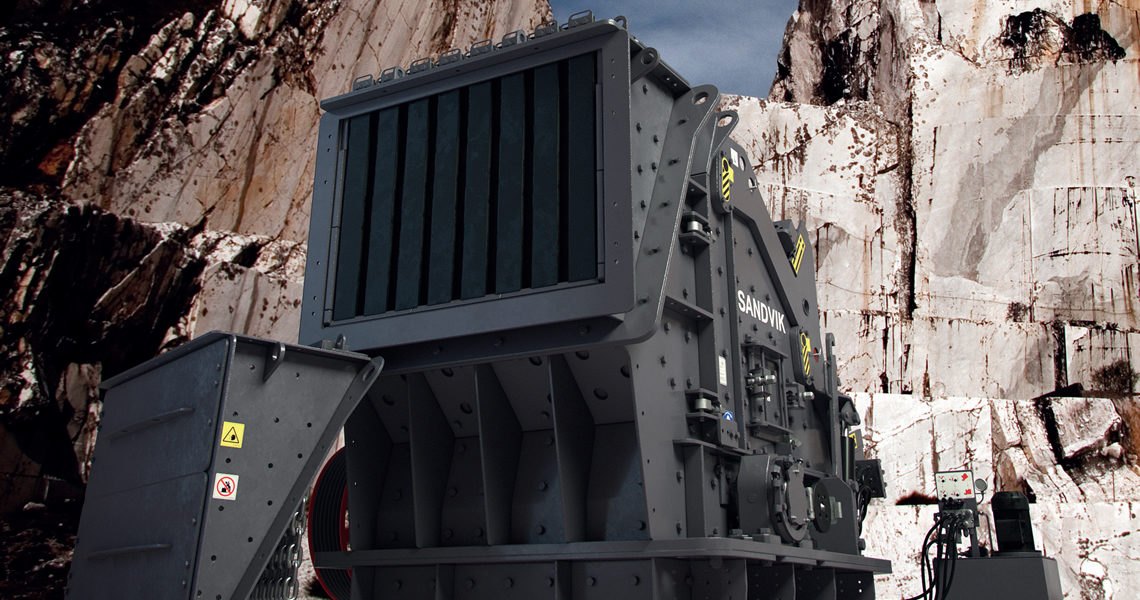

Sandvik CI711 HSI Impact Crusher

Overview

Sandvik CI711 HSI crusher is for primary crushing stage of non-abrasive rocks. It can be used for a wide range of applications, and is capable of crushing a variety of materials including re-enforced concrete.

Sandvik CI711 HSI

The working principle of Sandvik CI711 HSI encourages material to break along its natural cleavage planes, and it produces excellent, stress-free, cubical-shape products.

It is of the open rotor type, and the advanced design is equipped with a number of user-friendly features.

Typical applications could be making a Type 1 aggregate 0 – 40 mm (0 – 1 15/16 in.), or Railway Ballast 40 – 70 mm (1 15/16 – 2 ¾ in.), or recycling / crushing of re-enforced concrete and asphalt. With Sandvik CI711 HSI there is low capital outlay, low maintenance, fewer screens and conveyors, enabling a quicker return on investment.

Technical data

  • Feed size 600 mm (23.6 in)
  • Capacity < 200 tph
  • Length 2.84 m (112 in)
  • Width 2.00 m (79 in)
  • Height 2.29 m (90 in)
  • Weight 11,005 kg (24,262 lb)

Advantages

  • High reduction ratios
  • Energy efficient overload protection
  • Crusher blockage elimination
  • Hydraulic curtain adjustment and frame opening
  • Easy and safe maintenance
