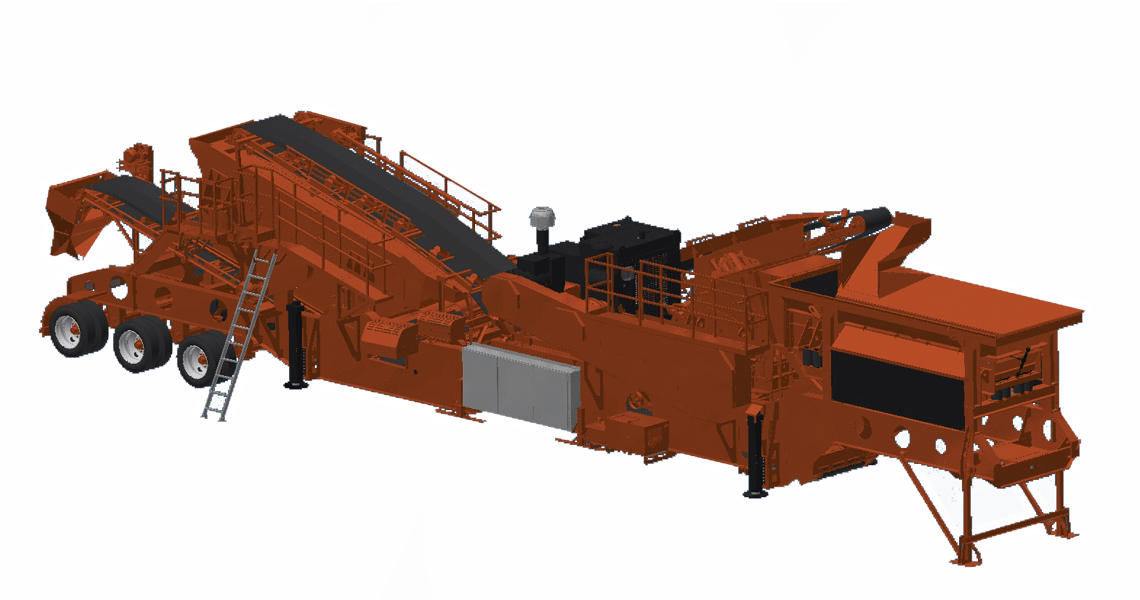

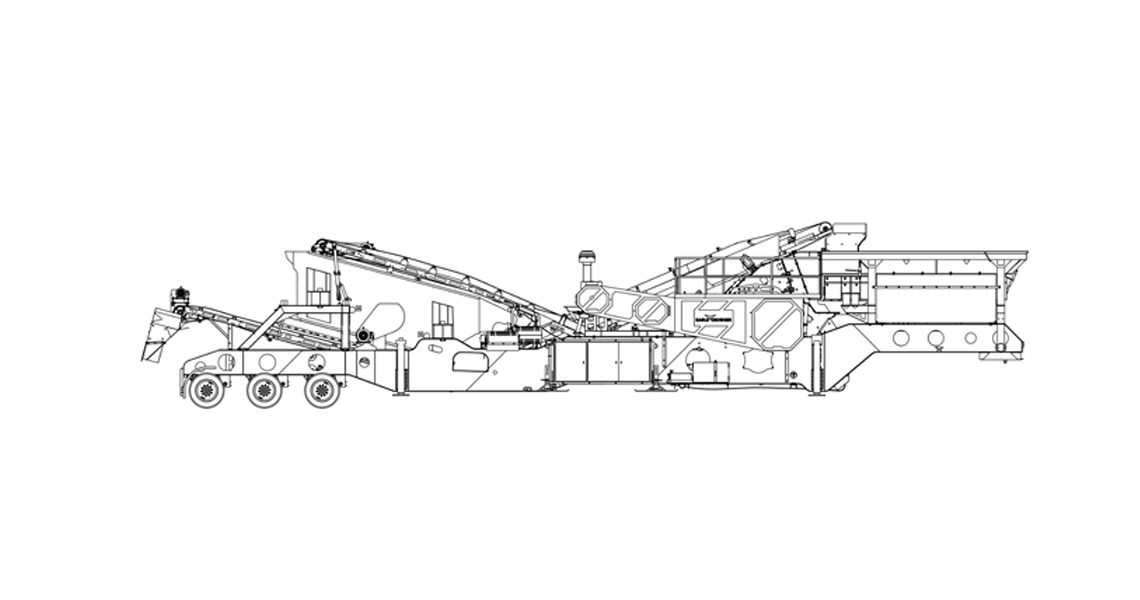

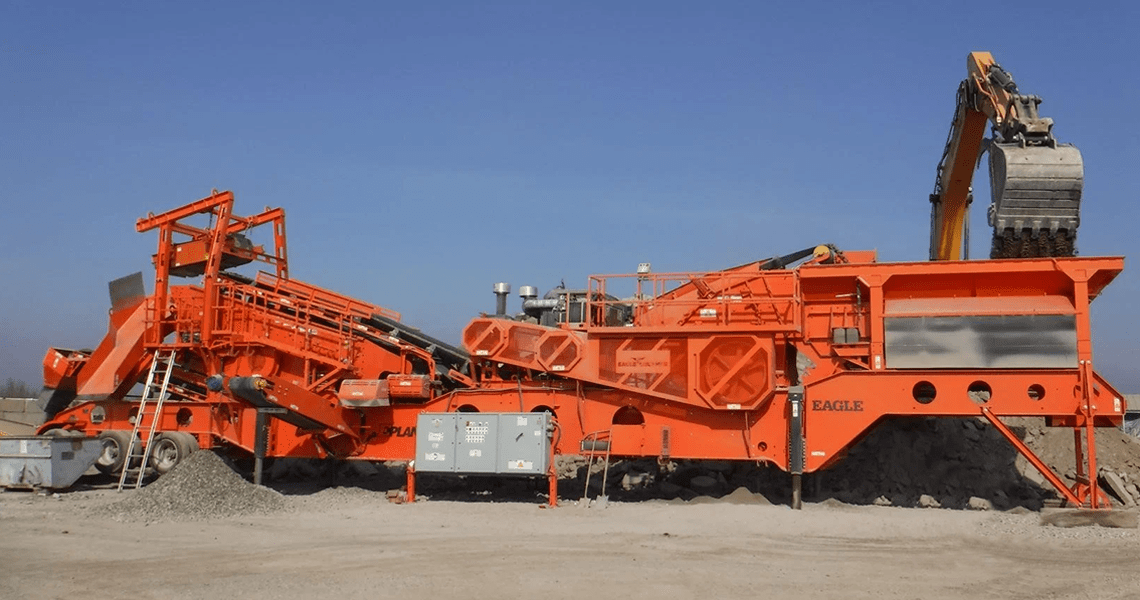

Eagle Crusher Two-Deck E-Plant®

Overview

The revolutionary E-Plant® is the industry’s only true high production double-deck screening/crushing system on one chassis—transportable in one pull—for the aggregate, asphalt, and recycling industries.

Brochure

Features and Benefits

  • Tows in one pull. Jeep available where required. Check with your DOT.
  • Screen/cross conveyors are positioned to allow convenient use of radial stackers.
  • Screen products first before crushing, crush all products or crush with the grizzly product removed.
  • Double-deck screening/crushing system enables processing of up to four products (including two spec products) at one time.
  • Reversible cross conveyor enables return of two decks back to increase production well beyond 40 percent, compared to our industry-leading UltraMax® 1200-25 CC, with no increase in wear and maintenance costs.
  • Optional, easy-on, easy-off electro- magnet assembly.
  • Easily transports with hydraulically folding return conveyor.
  • Drop-in grizzly deck options.
  • Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
  • Control panel has interlocked controls with breakers for motor protection.
  • Replaces Jaw/Cone/Screen multi-unit systems for a much lower initial investment while maintaining a high production of cubical spec product. Greatly reduces maintenance and fuel costs and is easily transported.
  • Manage the feeder speed for complete control of the flow of material into the impactor and on return conveyor with Variable Frequency Drives (VFD).
  • Includes wireless remote control for the feeder shutdown and all motor stop.
  • Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)

Key Specifications

  • Impactor: UM-25
  • Operating Length: 23.1 m / 75′ 10″
  • Gross Weight: 57,150 kg / 126,000 lbs
  • Travel Length: 22.1 m / 72′ 6″
  • Travel Width: 3.6 m / 11′ 11″
  • Travel Height: 4.1 m / 13′ 6″
  • Feed Hopper Capacity: 13 m3 / 17 yd3
  • Feed Hopper Capacity (Tons): 20.9 MT / 23 T
  • Vibrating Feeder: 5.5m x 1.2 m / 18′ x 45.5″
  • Feeder Grizzly Deck: 1.5 m long 2 step / 5′
  • Crusher Discharge Conveyor Width: 1067 mm / 42″
  • On-Plant Power Supply Diesel: 340 Hp diesel engine & 100 kW generator
  • On-Plant Power Supply Electric: 250 Hp all-electric power
  • Two-Deck Inclined Screen: 1.5 m x 4.9 m / 5’ x 16’
  • Top Screen Deck Cross Conveyor Width: 452 mm / 18”
  • Middle Bottom Deck Reversing Cross Conveyor Width: 452 mm / 18”
  • Under Screen Conveyor Width: 1067 mm / 42″
  • Return Conveyor (Hydraulic Fold) Width: 610 mm / 24″
