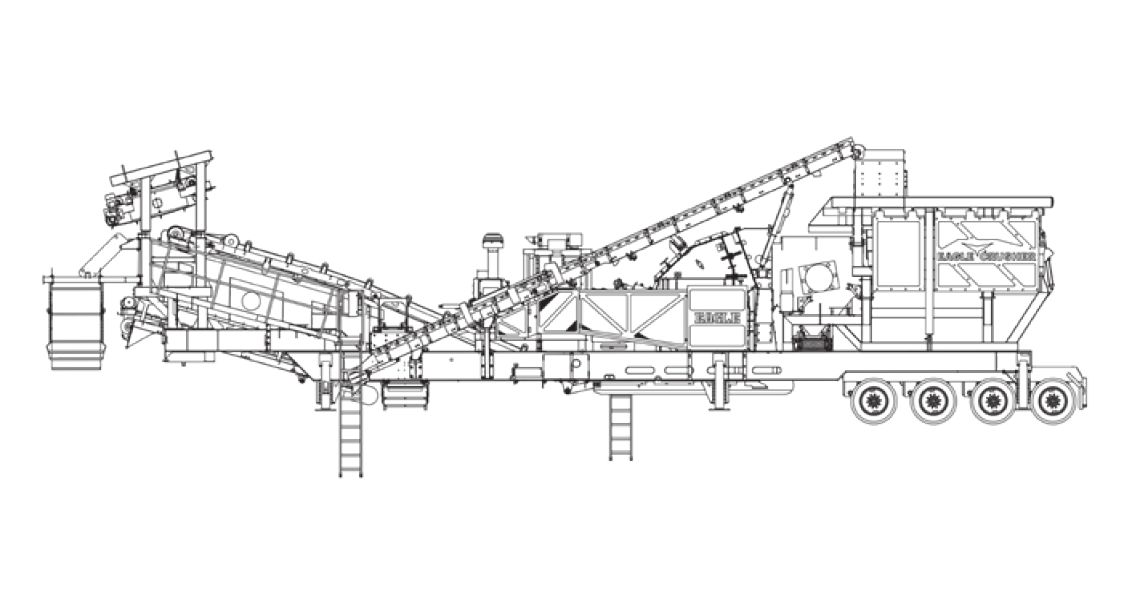

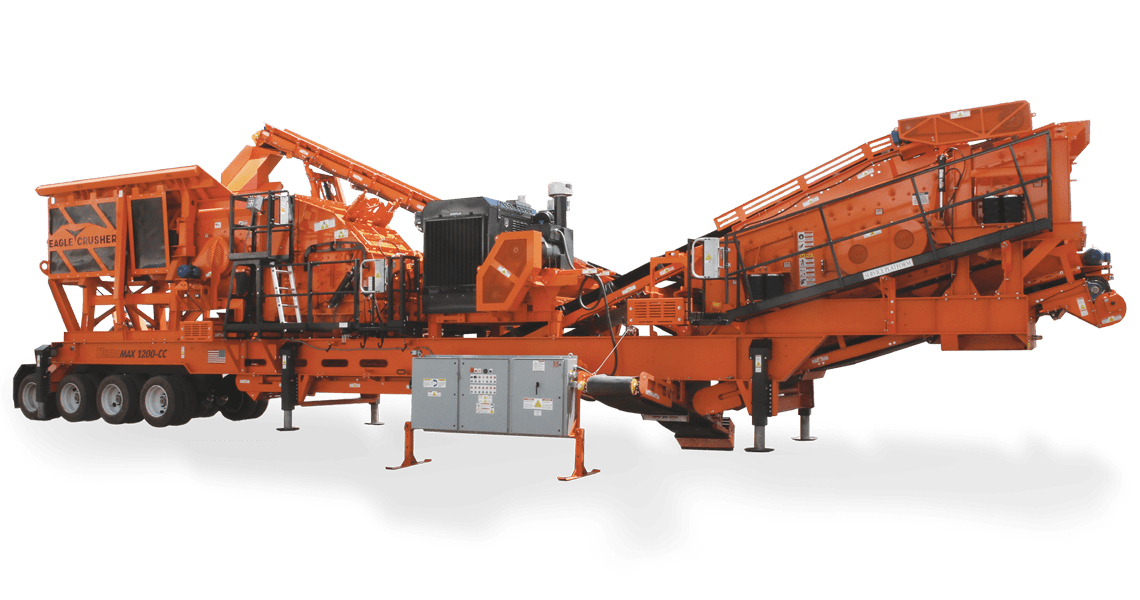

Eagle Crusher UltraMax® 1200-25 CC Portable Impact Crusher w/ Prescreen Feeder

Overview

The UltraMax® 1200-CC plant with prescreen feeder is designed for larger-size jobs with high volumes of material at- or near-spec, allowing most to be removed before crushing, increasing overall production and reducing wear.

Brochure

Features and Benefits

  • Integrated pre-screen feeder allows material at spec to be discharged before crushing, increasing production without increasing wear.
  • Available in tri-axle or quad-axle version. Each features one-pull transport with optional rear tag axle. Check with your DOT.
  • Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.
  • Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.
  • Top-deck retained material is returned to the crusher for further processing.
  • Available in-line electro-magnet removes for transport.
  • Two-deck inclined screen produces two cubical spec products. Plant is also available with a twin-shaft screen option with third reliever deck.
  • Features closed-circuit crushing and screening on one chassis.
  • Replaces Jaw/Cone/Screen multi-unit systems for a much lower initial investment while maintaining a high production of cubical spec product. Greatly reduces maintenance and fuel costs and is easily transported.
  • Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
  • Transports easily with the hydraulic retractable return conveyor and folding side conveyor.
  • Manage the feeder speed for complete control of the flow of material into the impactor and on return conveyor with Variable Frequency Drives (VFD).
  • Includes wireless remote control for the feeder shutdown and all motor stop.
  • Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)

Key Specifications

  • Impactor: UM-25
  • Operating Length: 21.7 m / 71′ 4″
  • Gross Weight: 59,000 kg / 130,000 lbs
  • Travel Length: 20.2 m / 66′ 3″
  • Travel Width: 3.7 m / 11′ 11.5″
  • Travel Height: 4.1 m / 13′ 5.5″
  • Feed Hopper Capacity: 9.5 m3 / 12.5 yd3
  • Feed Hopper Capacity (Tons): 15.3 MT / 16.9 T
  • Vibrating Feeder: 3.4 m x 1.2 m / 11′ x 45.5″
  • Scalping Screen: 1.2 m x 1.6 m / 48″ x 64″
  • Discharge Conveyor Width: 1067 mm / 42″
  • On-Plant Power Supply Diesel: 330 kW / 450 Hp diesel engine & 140 kW generator
  • On-Plant Power Supply Electric: 186 kW / 250 Hp all-electric power
  • Two Deck Inclined Screen (Third Reliever Deck Optional): 1.5 m x 4.9 m / 5′ x 16′
  • Top Screen Deck Cross Conveyor Width: 457 mm / 18″
  • Bottom Screen Deck Cross Conveyor Width: 610 mm / 24″
  • Fines Screen Conveyor Width: 1067 mm / 42″
  • Return Conveyor (Hydraulic Fold) Width: 610 mm / 24″
  • Grizzly Discharge Conveyor: 457 mm / 18”
