Edge FTS 360 Unlimited
Overview
The EDGE FTS 360° Unlimited Range incorporates all the benefits of the popular FTS Series product line and adds an additional design feature, with its ability to slew a complete 360° uninterrupted. Mounted on a centre slew bearing chassis the FTS360 has brought production efficiency improvements in many ports and quarries throughout the globe.

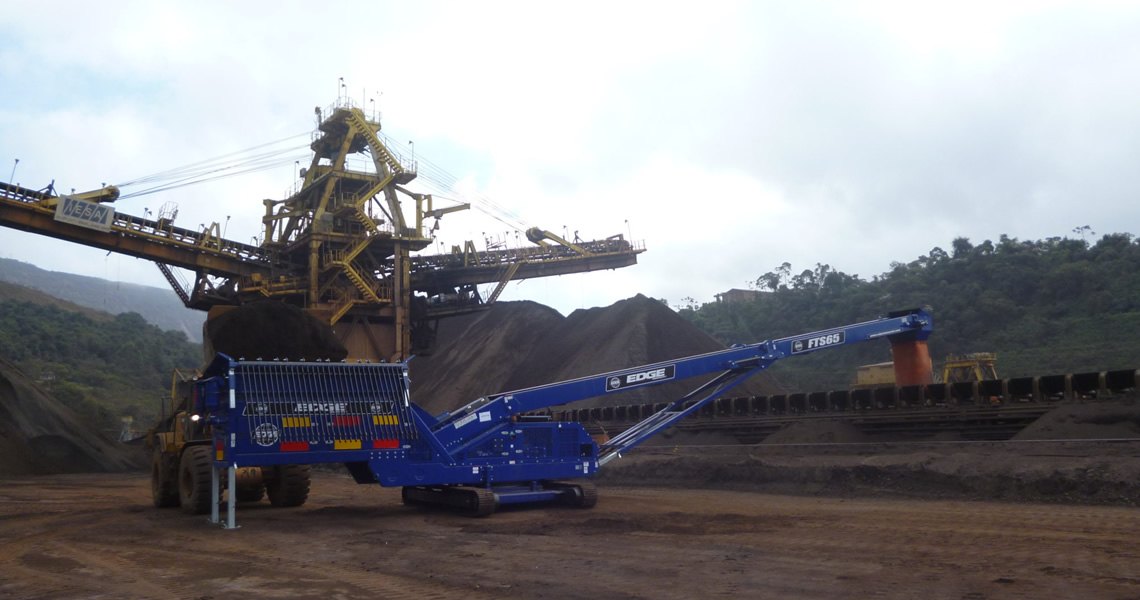

The 360°slewing functionality, pioneered by EDGE Innovate allows the FTS360 to simply position its tracks parallel to the vessel/wagon, allows the unit to travel alongside the vessel/wagon without the need to readjust the orientation of the machine. With conveyor discharge lengths of up to 23m (75’), hopper capacity of up to 14m³ (18.3yrds³), the EDGE FTS360 is the ideal solution for barge and train wagon loading and unloading, as well as creating radial stockpiles.
Features:
- Can accept loads directly from excavator, wheel loader, crushers or screener
- Improved material quality by reduced compaction, degradation, segregation and contamination
- Eliminates the need for double handling of material, reducing labour and maintenance costs
- Variable speed belt feeder to ensure efficient material transfer from hopper to discharge conveyor
Models:
- FTS65 360°
- FTS75 360°
Applications:
- Aggregates
- Coal
- Compost
- Construction and demolition waste (C&D)
- Food products
- Mulch
- Sand and gravel
- Topsoil
- Wood waste
Options:
- Discharge conveyor lengths from 20-23m (65-75’)
- Power-source options: Diesel/Hydraulic, Diesel Genset, Dual Power
- Over-band magnet
- Remote stop/start feeder
- Complete remote functionality
- Remote tracking
- Rubber or steel plate tracks
- Wheel mounted hopper support legs
- Fold down head section for barge/train wagon loading
- Various hopper liners
- Hopper extensions
- Full , 1/2 and quarter length rubber conveyor skirting available
- Various belt types and plys available
- Variable speed discharge conveyor
