Overview

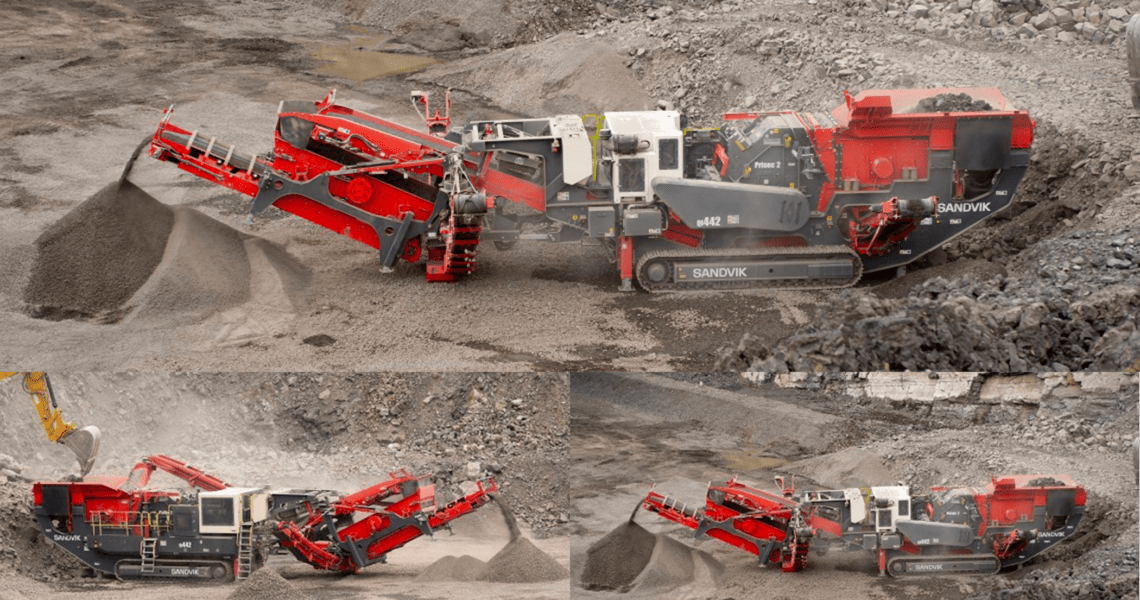

Featuring Sandvik’s market leading Impactor technology, this new model will offer customers unparalleled flexibility in primary and secondary applications, undoubtedly proving to be the perfect solution for large scale operators.

Its heavy duty chassis has been designed for ease of mobility and yet is able to withstand the toughest of environments. It incorporates the Sandvik CI421 PrisecTM impact crusher which is suitable for a wide variety of applications in demolition, recycling and quarrying.

It is available with an optional double deck hanging screen system, which will allow customers an even greater return on investment through the facility to produce accurately sized products for immediate use.

Features and Benefits

• User friendly PLC control system and color screen for ease of operation
• Hydraulic raise/lower product conveyor to alleviate rebar obstruction
• Double deck pre-screen for accurate fines removal
• Adjustable tip speed for precise end product refinement
• Reversible hydraulically driven cooling fan with automatic back flush feature

Key Specifications

Equipment: Sandvik CI421 Prisec™ Impactor
Feed Opening: 1,360 x 800 mm / 54 x 31 ½”
Maximum Feed Size: 800 mm / 31 ½”
Engine: C13 Acert 328 kW / 440 hp
Transport Length: 15.70 m / 52′
Transport Width: 3.04 m / 10′
Transport Height: 3.62 m / 11′ 11″
Weight: 56,450 kg / 124,450 lbs

Transport Length with HS: 19.38 m / 63′ 6″
Transport Width with HS: 3.54 m / 11′ 6″
Transport Height with HS: 3.74 m / 12′ 3″
Weight with HS: 67,000 kg / 147,709 lbs
