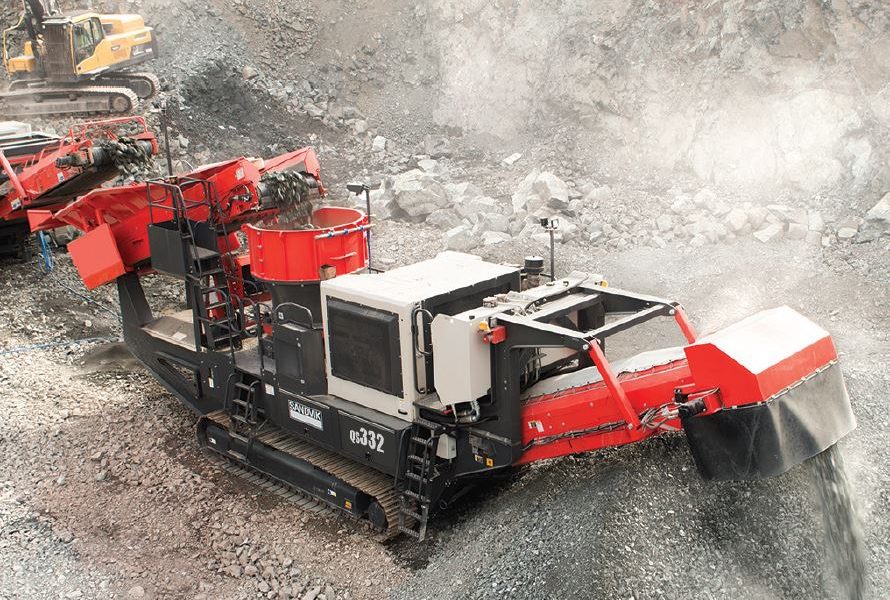

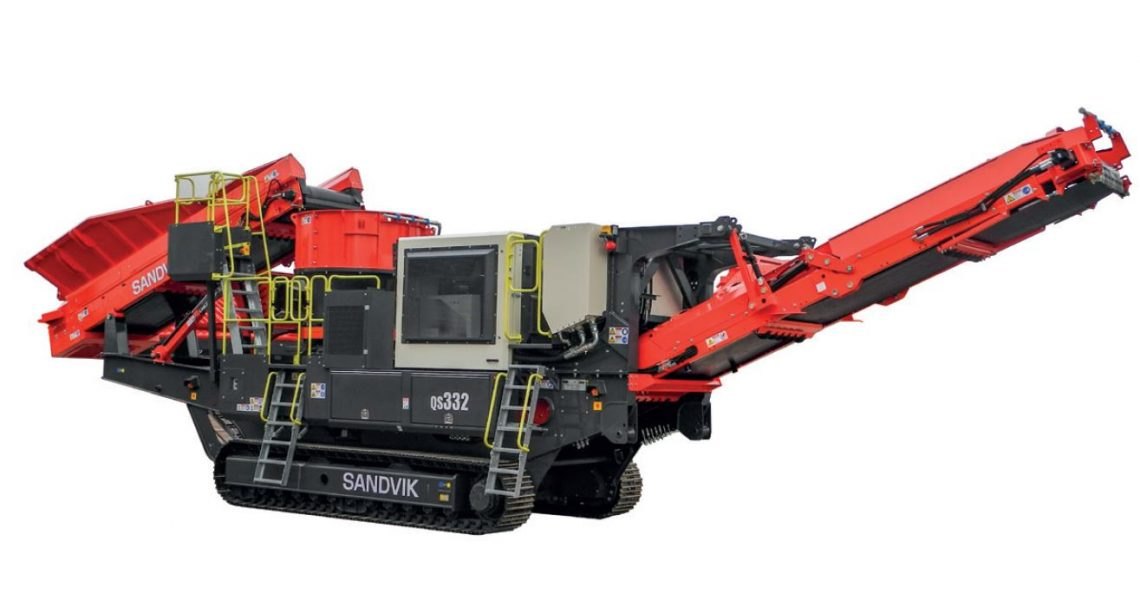

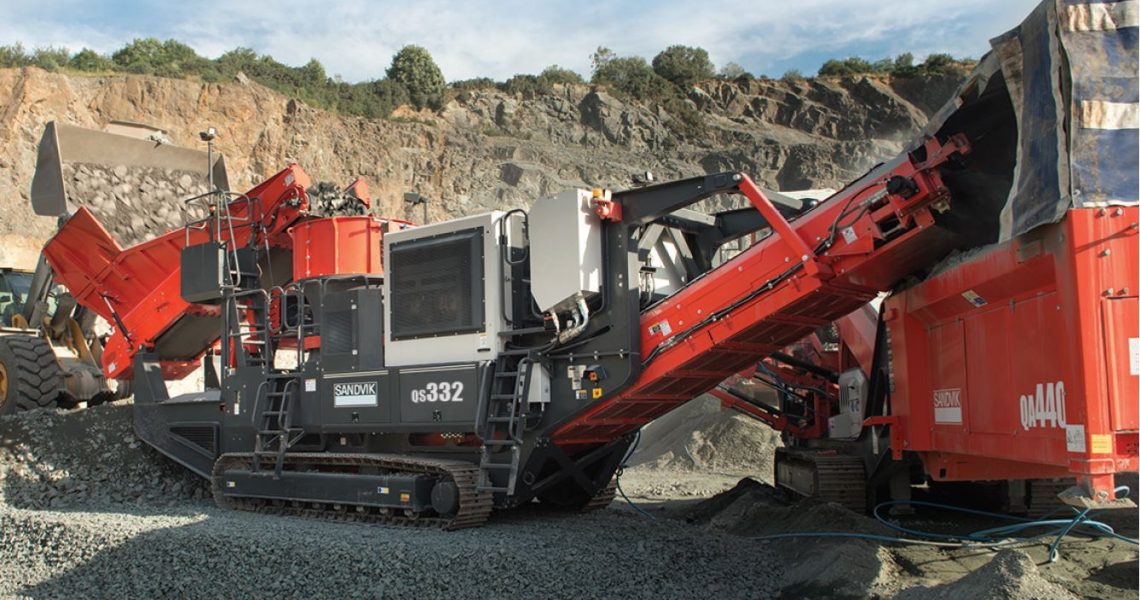

Sandvik QS332 Tracked Secondary Cone Crusher
Overview
QS331 is now QS332; a compact, high quality, secondary cone crusher. Fitted with the CS430 “S” Type gyratory cone crusher, it is capable of accepting large feed sizes and achieving high production capacities. With a choice of three crushing chambers, a number of throws and eccentric bush settings, it is one of the most versatile cone crushers on the market today.
The CS430 cone comes equipped with a hydroset CSS regulation system that will allow you to optimize production and keep track of liner wear. We have also fitted the unit with an automatic level sensor above the crushing chamber to help you control the feed rate. This will minimize operator intervention and ensure you maximize production and reduction.
Features and Benefits
- Fitted with a level sensor above the chamber to optimize the feed rate
- Pressurized cone to prevent dust ingress into the bushes and bearings
- Metal detector providing you with maximum stability and protection from tramp material
- Unique Constant Liner Performance for extended life of chamber liners, minimizing your downtime
- Remote camera so the crushing chamber is visible to you from ground level
- User friendly PLC control system and color screen for ease of operation
Key Specifications
- Equipment: Sandvik CS430 Hydrocone
- Maximum Feed Size: 360 mm / 14 ⅛”
- Engine: C9 / C9.3 Acert 261 kW / 350 hp
- Transport Length: 15.80 m / 51′ 10″
- Transport Width: 2.80 m / 9′ 2 ¼”
- Transport Height: 3.80 m / 12′ 5″
- Weight: 40,000 kg / 88,185 lbs
