Overview

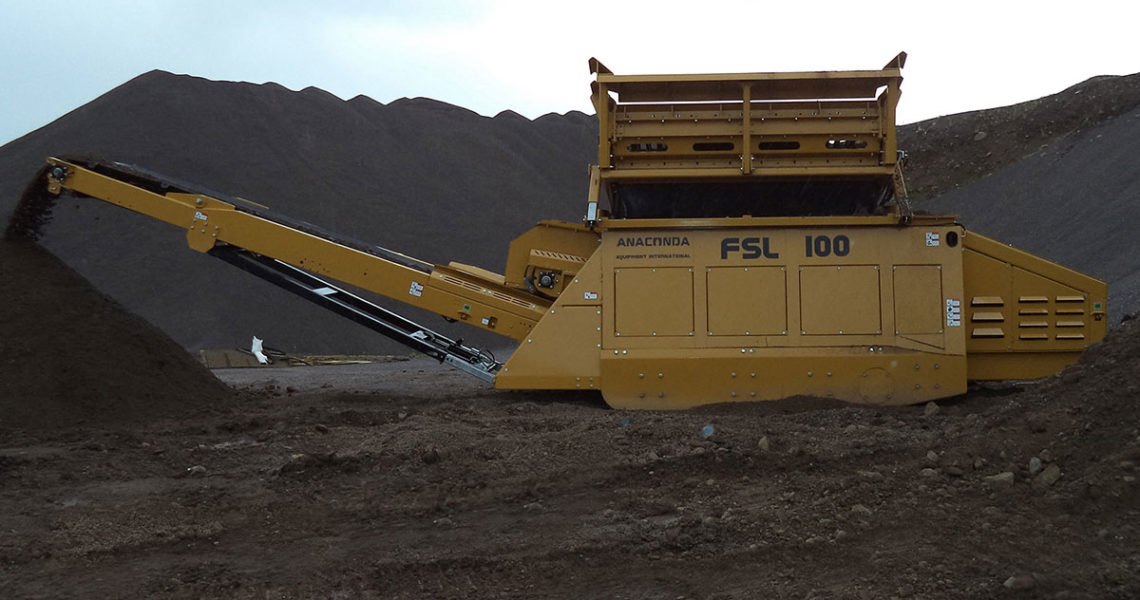

The FSL100 scalping screen is one of the most robust and reliable scalping screens on the market. Built to handle the toughest of applications, the FSL100 comes with a double deck vibrating screen and the longest stockpiling conveyor available. The FSL100 can be shipped worldwide in a standard 40’ container thus keeping shipping costs to a minimum.

Features & Benefits:

• Stage 3A JCB 444 dieselmax 63kW (84HP) – ROW
• Stage 3B JCB 444 EcoMax 68kW (91HP) – EU
• Robust chassis & track frame design ensures maximum durability
• Maximum mobility with remote / radio controlled track operation.
• Angle adjustable vibrating grid
• Tipping function activated hydraulically
• Conveyor Belt – 3ply 1050mm (42”) wide (plain or chevron)
• Independent feeder and discharge conveyor drives allow greater control of the material
• Fully compliant with the latest safety regulations
• Quick set up time typically under 15 minutes.
• Machine weight: 20,000 KG / 44,000 lbs

Options:

• Stage 3A – DEUTZ  TD2011 L04 Engine 49.4KW (66HP) -ROW
• Stage 3B – DEUTZ  TD2.9L4 Engine 50KW (67HP) – EU
• Remote control tipping grid
• Vibrating grid wing extensions
• Radio remote control
• Wear resistant hopper liners
• Dust covers
• Dust suppression nozzles
