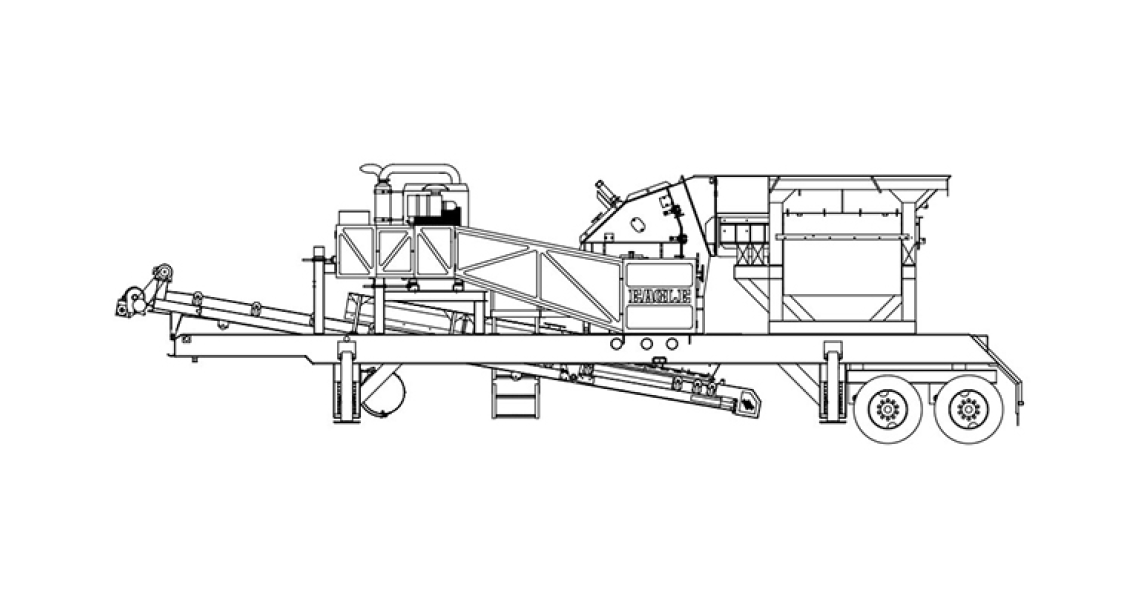

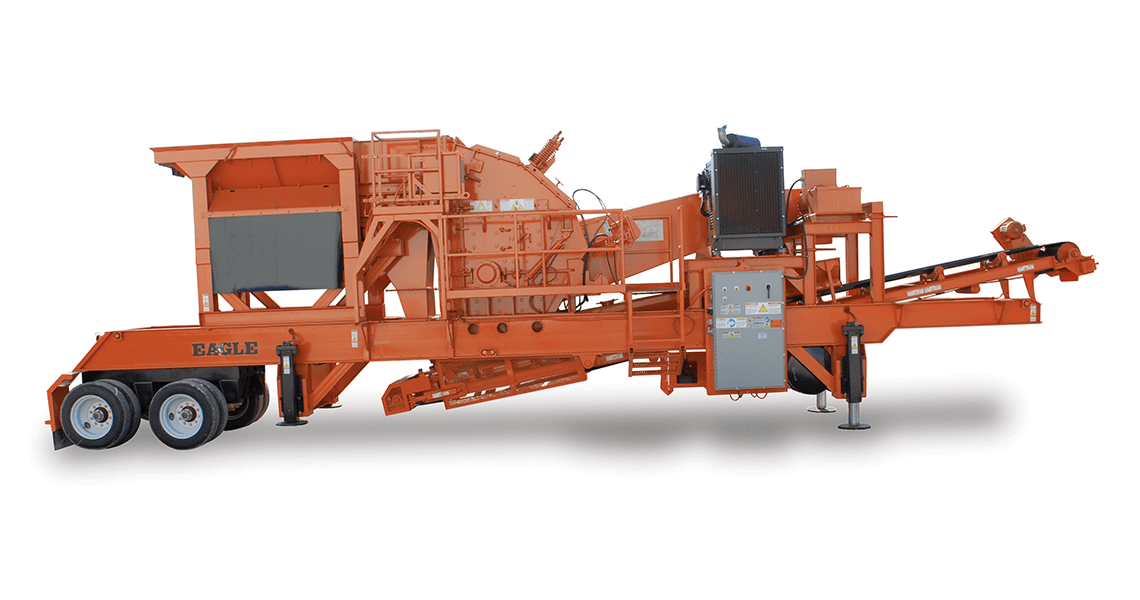

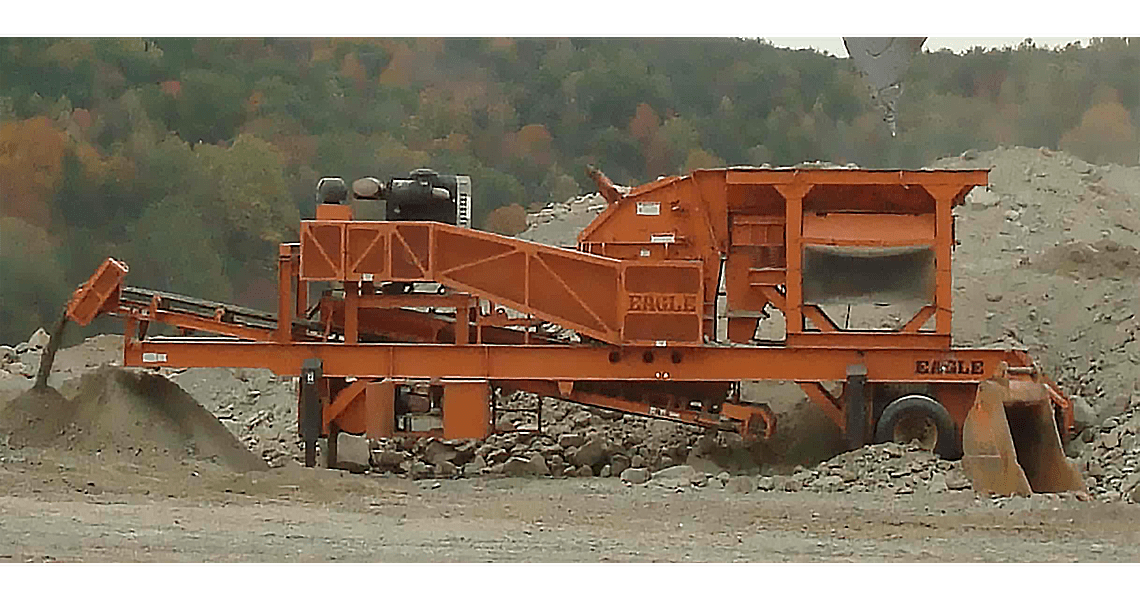

Eagle Crusher UltraMax® 400-04 CV Portable Impact Crusher

The UltraMax® 400-CV portable impactor plant is one of the most durable, reliable, and versatile plants for your smaller-sized jobs.

Brochure

Transports with ease in one pull. No additional or specialized trailer necessary.
Moves easily around the job site with the optional dolly kit with pintle hitch.
Optional electro-magnet is available as a cross-belt or in-line installation that stays on for transport.
Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.
Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.
Outperforms similar sized track units for production and quality of product.
Features standard grizzly bypass chute and available cross-belt conveyor with flop gate to allow for either removal of the material that passes through the grizzly deck for stockpiling or blending back with the crushed material.
Features unique one-step, grizzly deck to remove fines before crushing.
Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
Includes wireless remote control for the feeder shutdown and all motor stop.
Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)

Impactor: UM-04
Operating Length: 14.0 m / 45’ 10”
Gross Weight: 25,600 kg / 56,500 lbs
Travel Length: 12.5 m / 41’ 0”
Travel Width: 2.6 m / 8’ 6”
Travel Height: 4.1 m / 13’ 5”
Feed Hopper Capacity: 5.4 m³/ 7 yd³
Feed Hopper Capacity (Tons): 8.6 MT / 9.5 T
Vibrating Feeder: 3.3 m x 0.7 m / 10′ 9″ x 26″
Feeder Grizzly Deck: 838 mm 1 step / 33″ long 1 step
Discharge Conveyor Width: 610 mm / 24″
Discharge Conveyor Height: 2187 mm / 7′ 2″
On-Plant Power Supply Diesel: 168 kW / 225 Hp diesel engine & 40 kW generator
On-Plant Power Supply Electric: 75 kW / 100 Hp all-electric power
